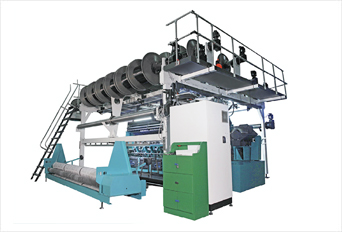

RDJ5/1 EL (138") /RDJ7/1 EL (138") E24/E22

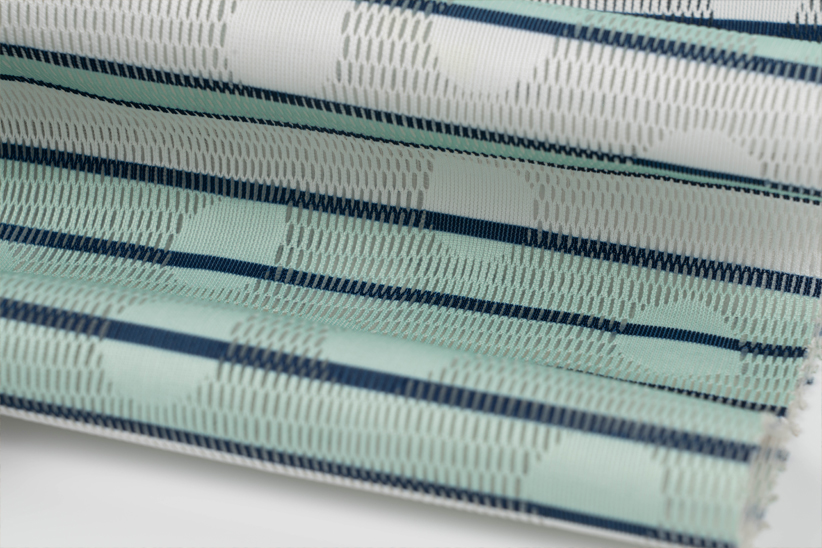

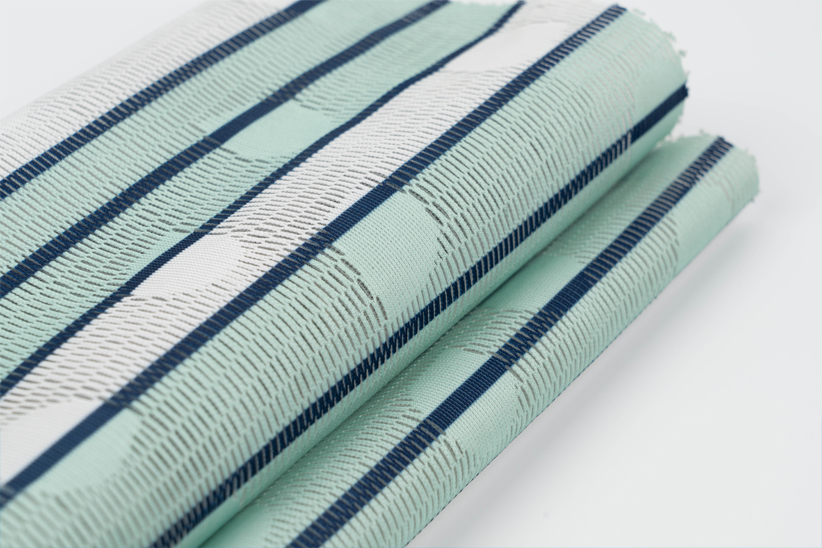

Applications: shoes, mattresses and bedding

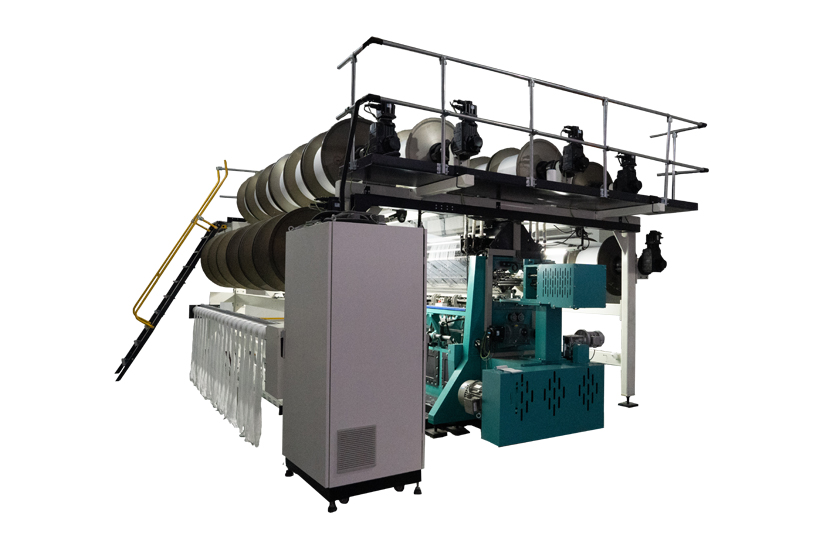

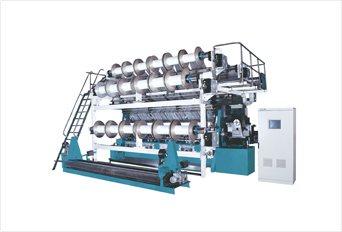

RDJ4/2 EL (138") /RDJ6/2 EL (138") E24/E22 Jacquard Double Needle Bar Warp Knitting Machine

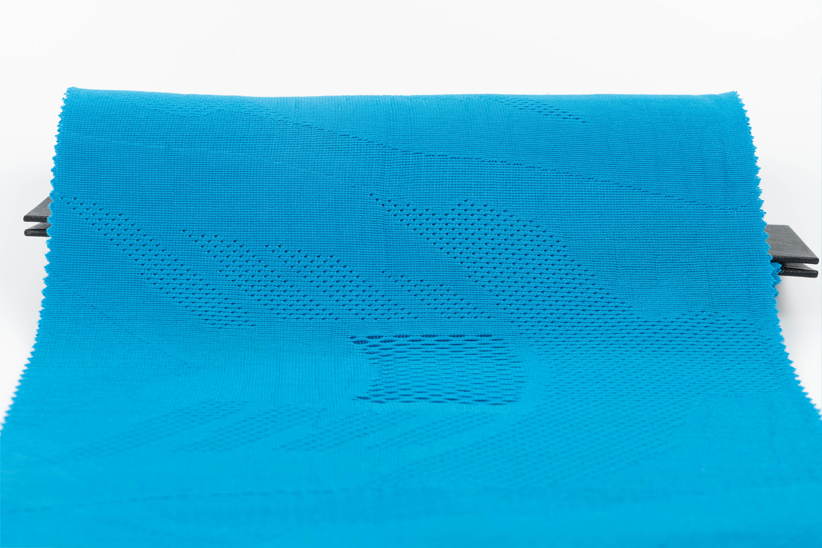

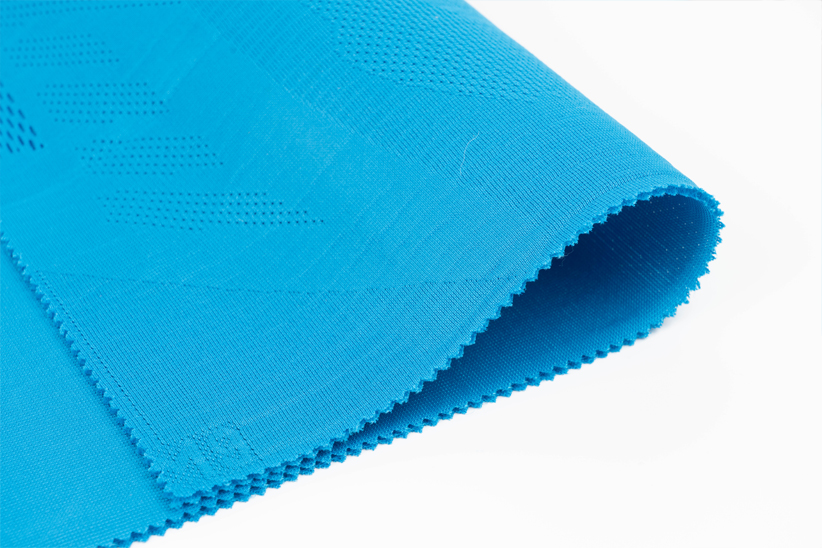

Applications: seamless
| RDJ5/1 EL (138")/RDJ7/1 EL (138") E24/E22 Jacquard Double Needle Bar Warp Knitting Machine | RDJ4/2 EL (138")/RDJ6/2 EL (138") E24/E22 Jacquard Double Needle Bar Warp Knitting Machine | |
| Guage | E22, E24,,E28 | E22, E24, E28 |
| Working Width | 70" , 90" , 140" | 70" , 90" , 140" |
| Bars Number | GB+JB | 2*GB+2JB/ 4*GB+2*JB |
| Machine Speed | 20-600r/min | 20-600r/min |
| Knock over distance | 1-12MM | 1-12MM |
| Let off | 6/8*EBC | 6/8*EBC |
| Shogging manner | EL or Pattern disc | EL or Pattern disc |
| Drawing off | Electronic | Electronic |
| Batching | Electronic | Electronic |
| Beams size | 21"/φ30" | 21"/φ30" |
| Main motor power | 4kW (70", 90"), 7.5kW (140") | 4kW (70", 90"), 7.5kW (140") |

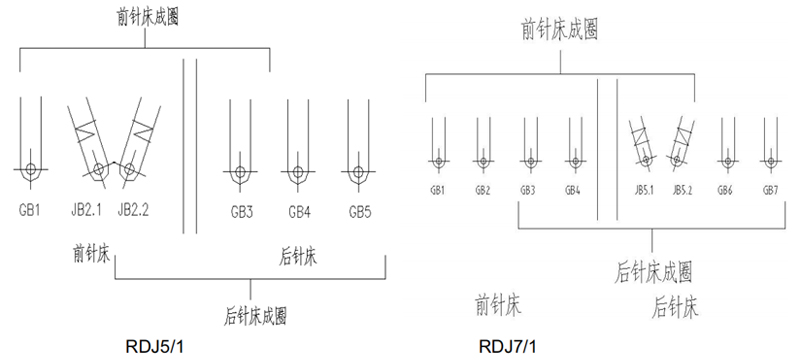

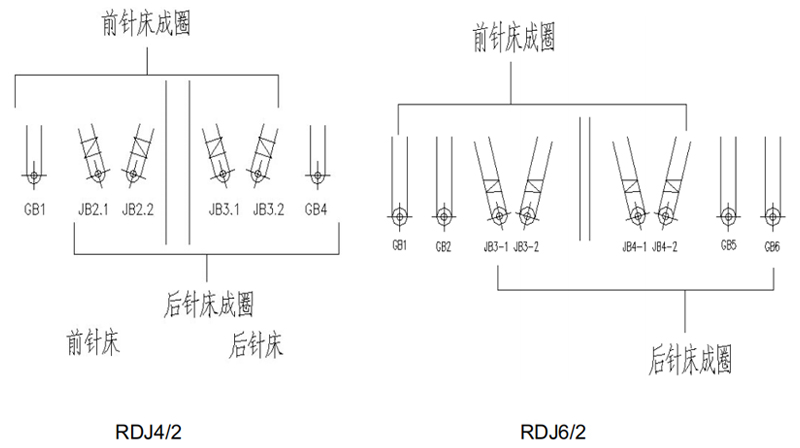

Bar arrangement:

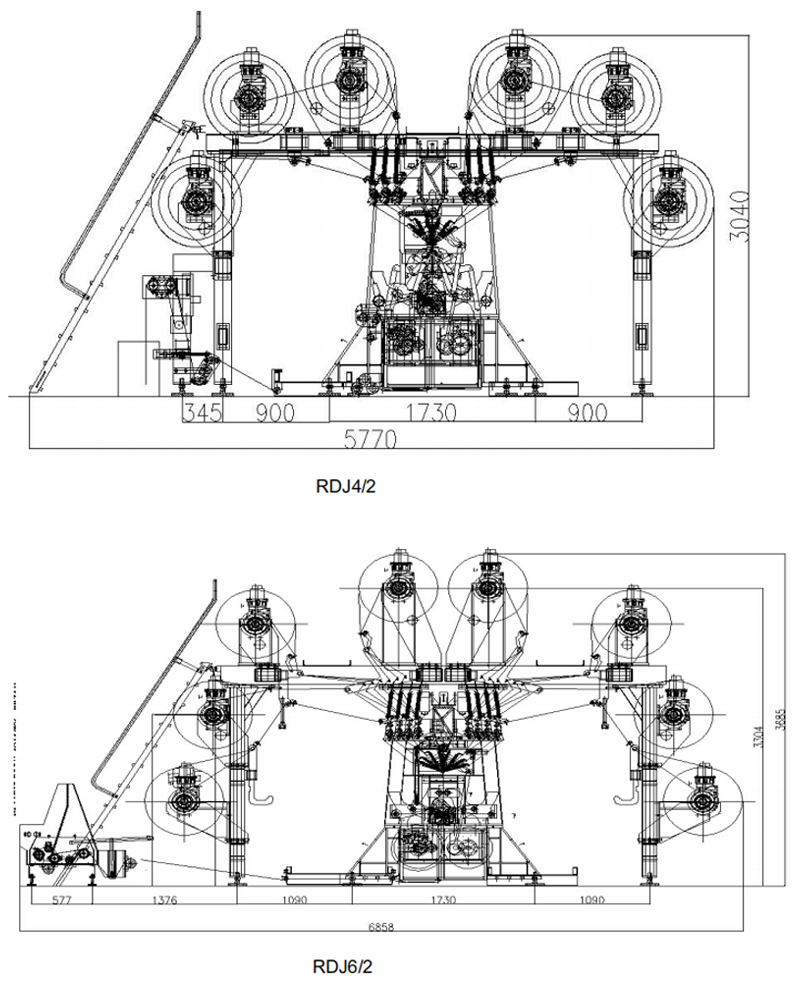

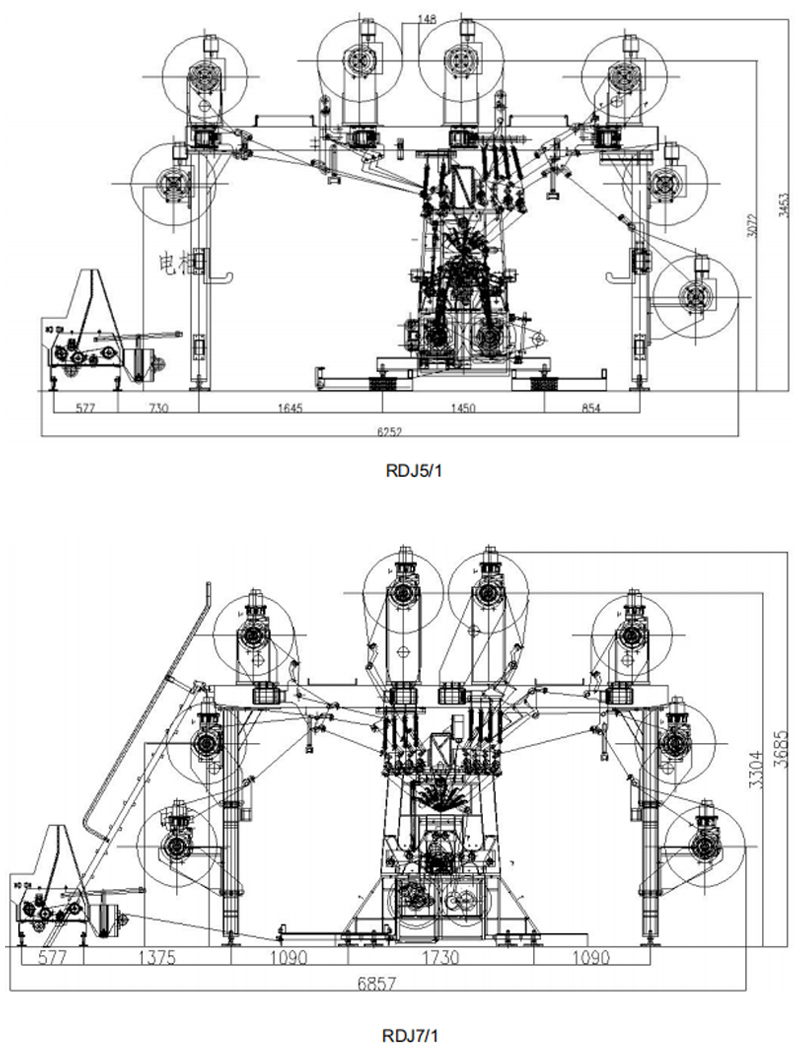

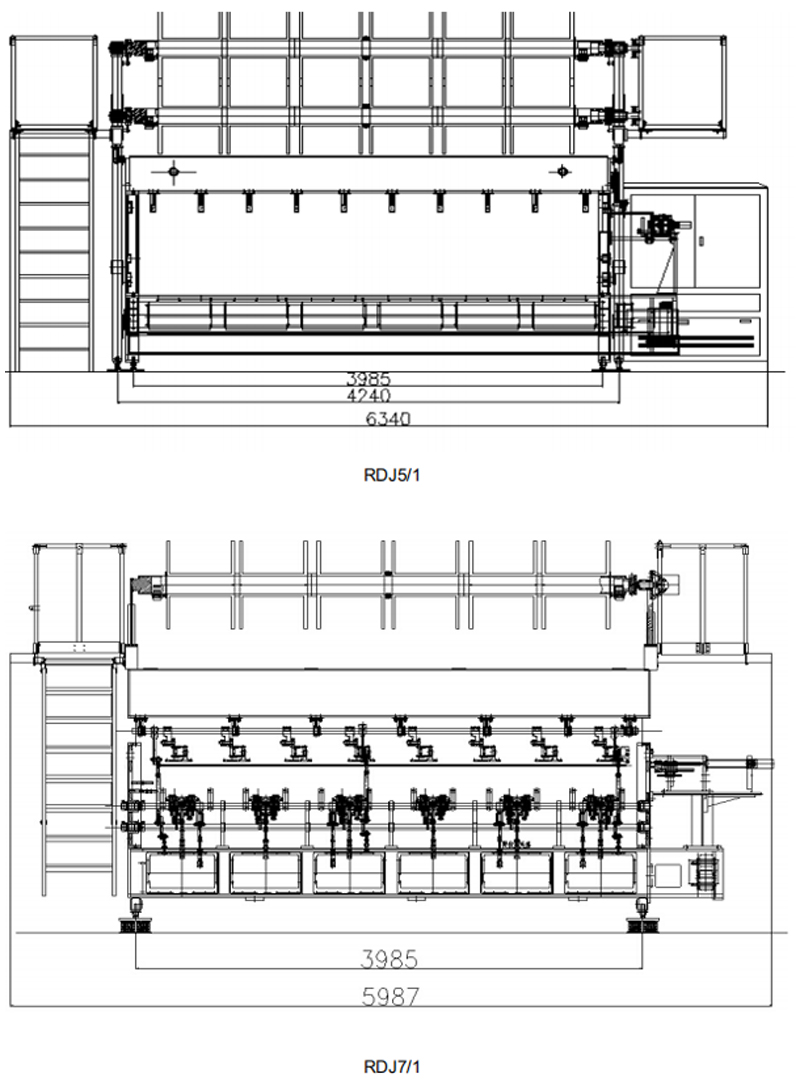

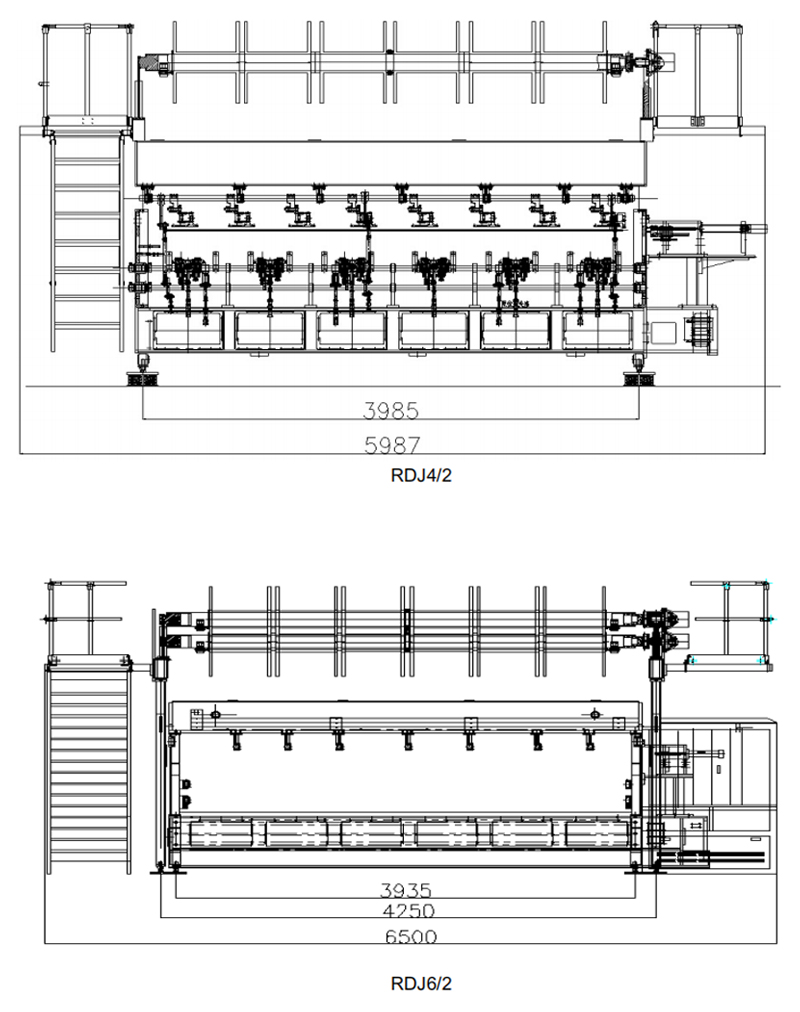

Machine size:
